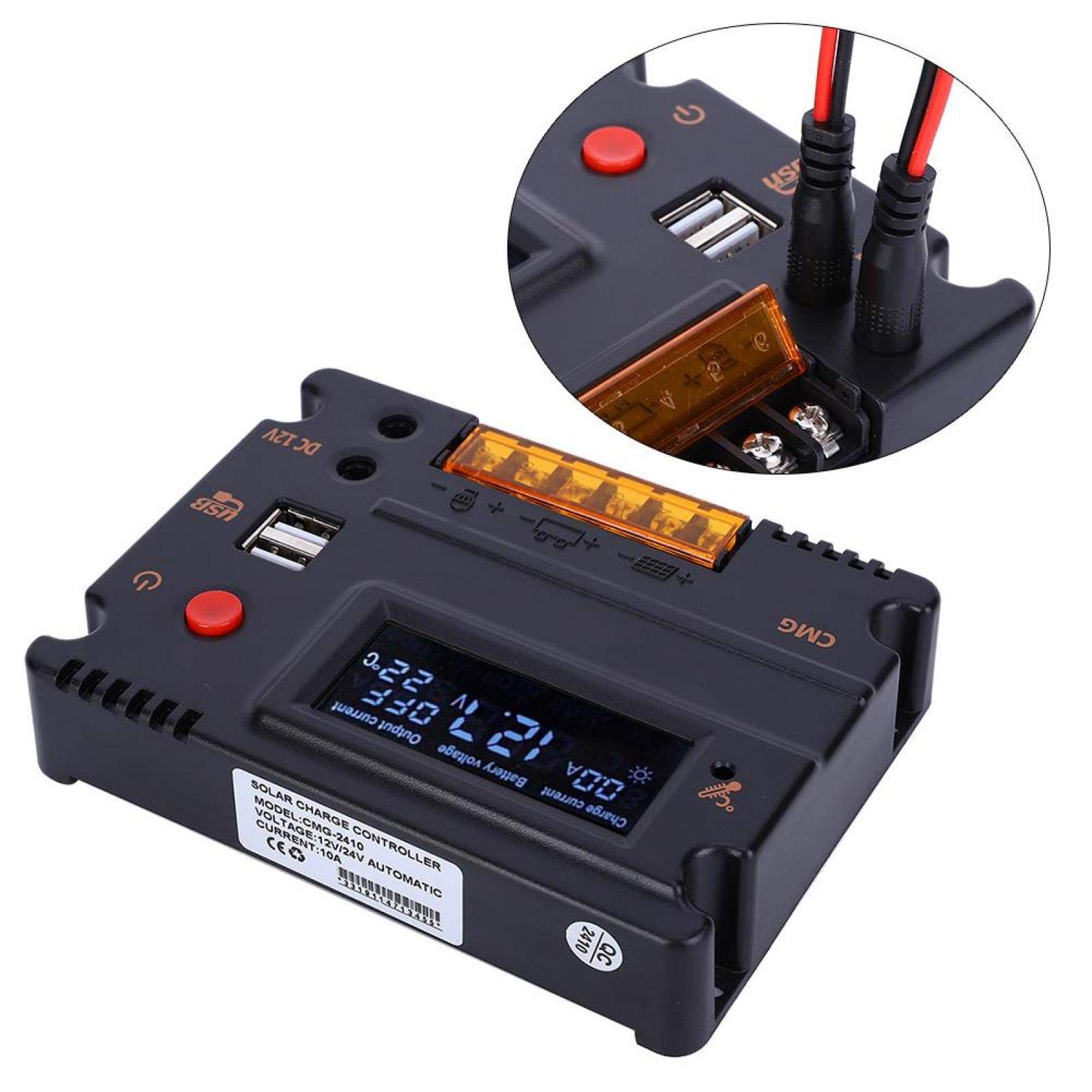

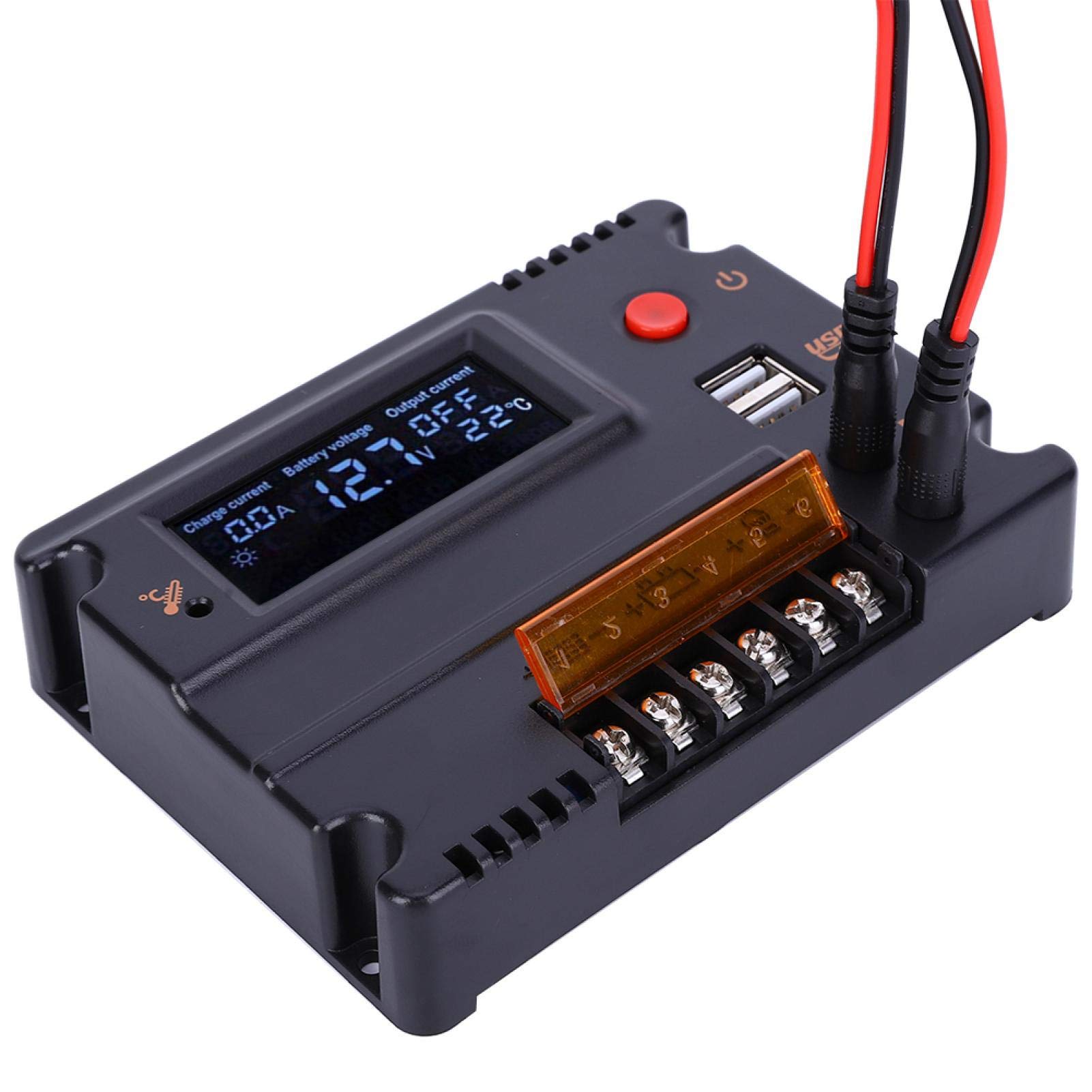

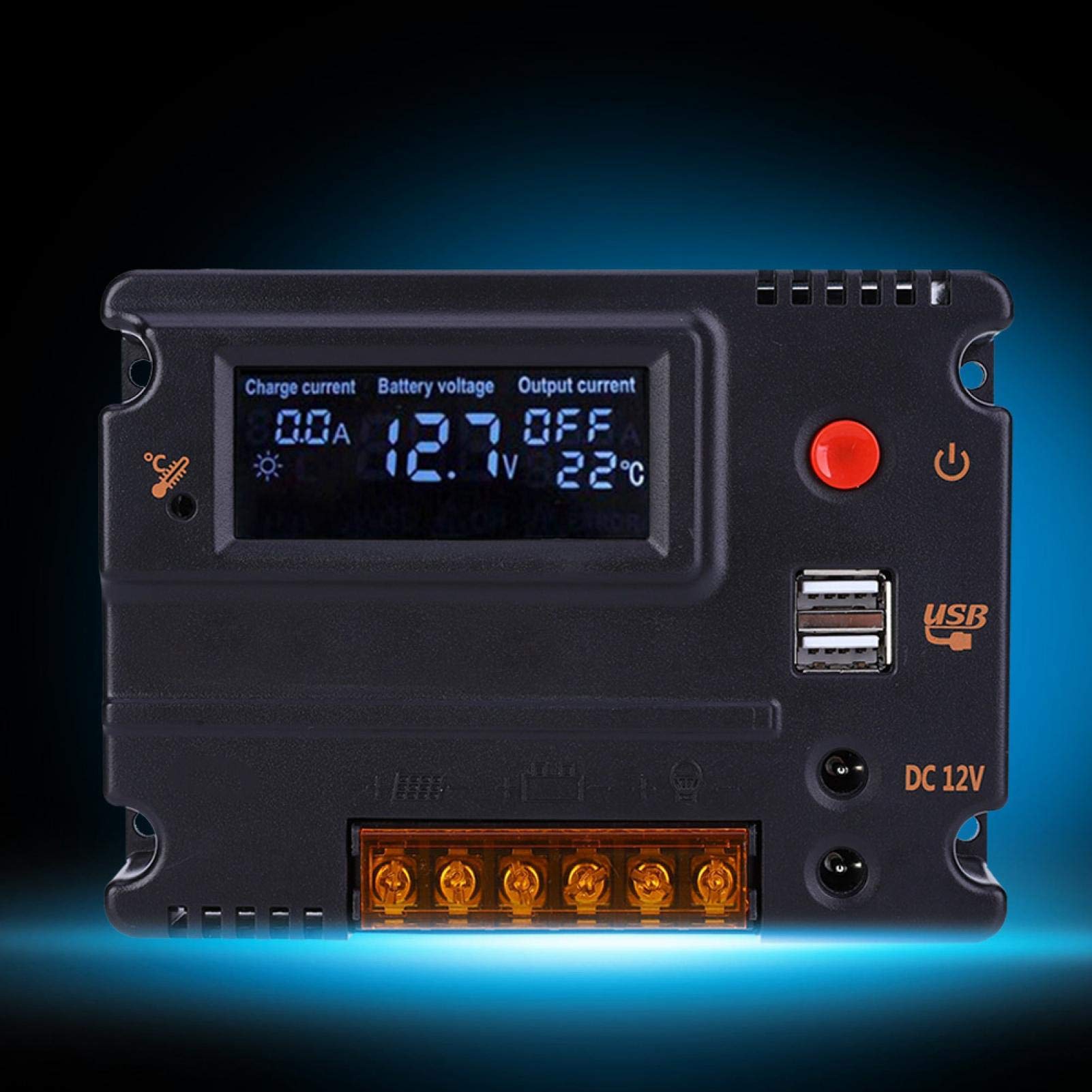

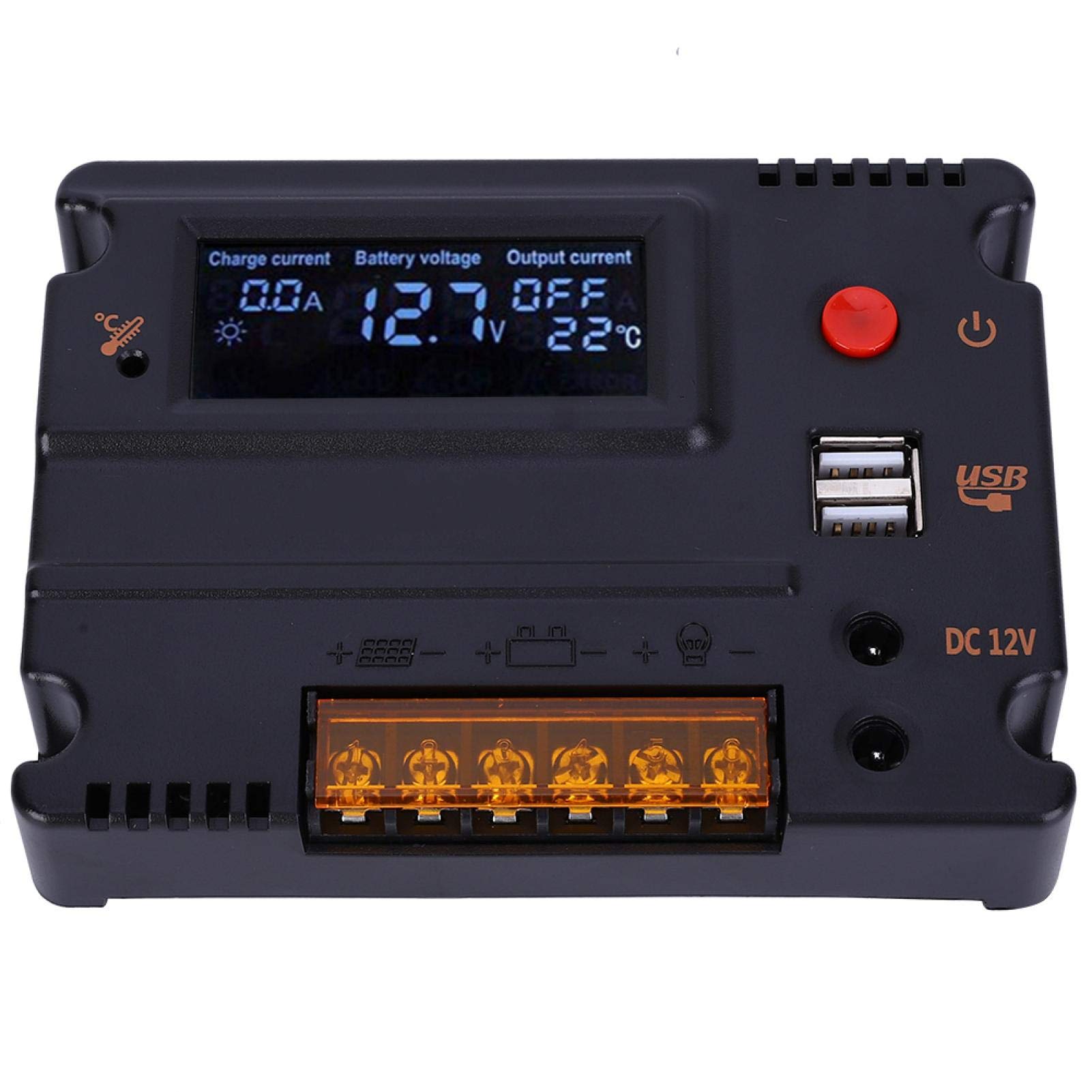

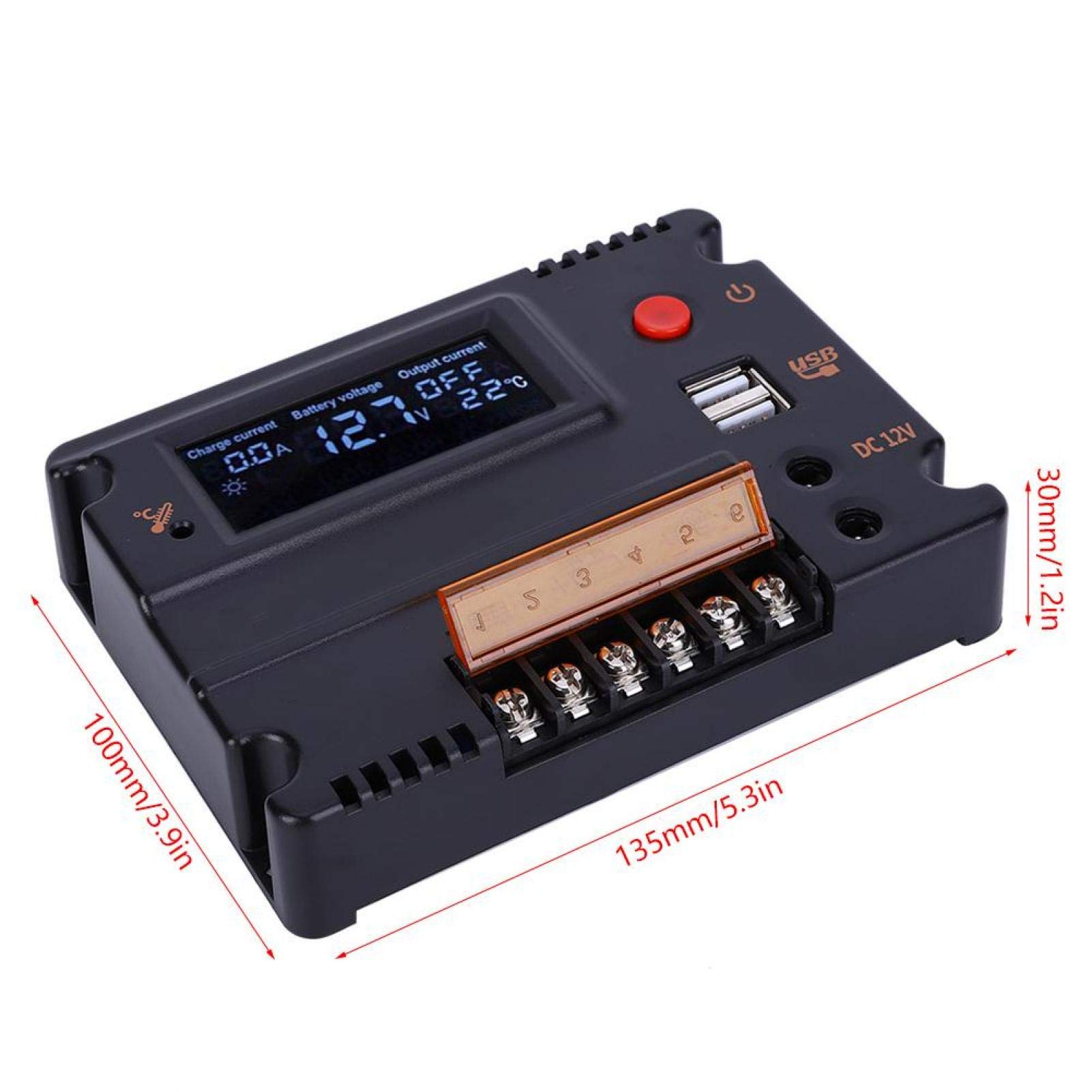

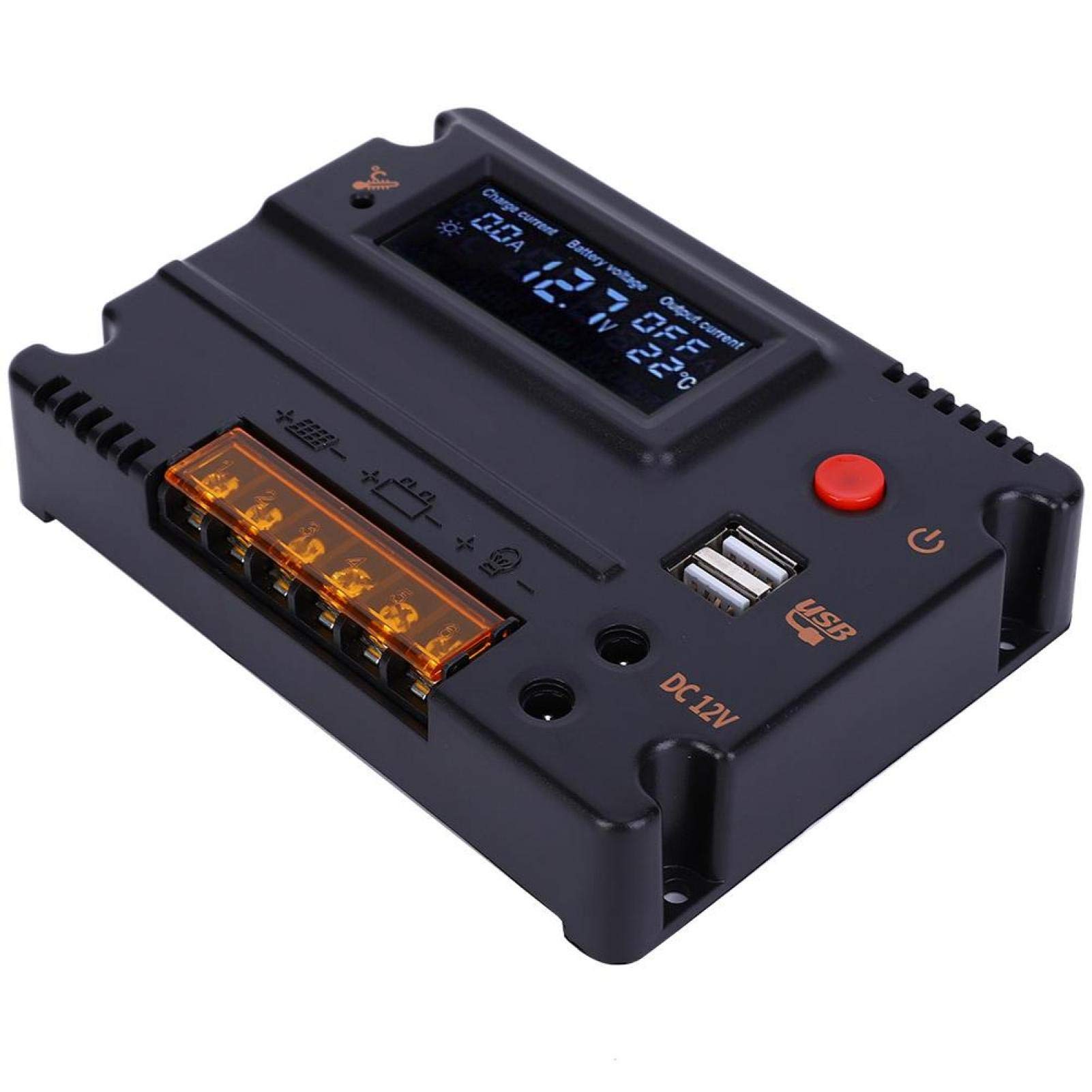

Solar Charge Controller for Lithium Battery - 12V/24V MPPT Intelligent Solar Panel Regulator for Home & Outdoor Use - Perfect for RV, Boat, Off-Grid Power Systems

Product Description

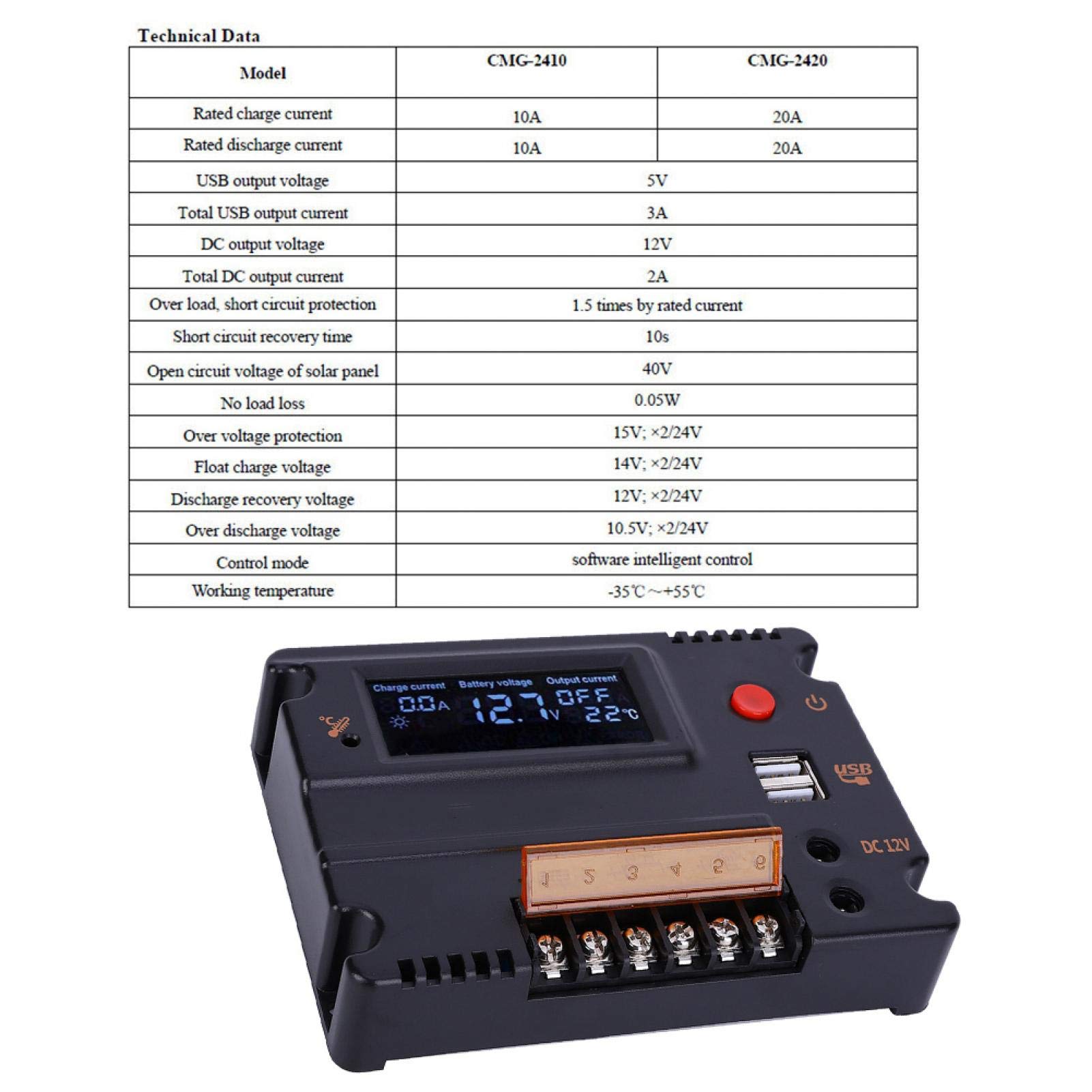

Feature:1. Adopt LCD to display all parameters, rich in content, solar controller can intuitively understand the system operation.2. With built-in energy-saving backlight board, controller supports better display effect and more power saving.3. DC12V and USB5V output with switching power supply regulated output can be used for DC lighting and mobile phone charging.4. With output switch, intelligent control and easy operation, the system power supply adopts switching power supply, which reduces the static working current.5. Independent temperature detection circuit is with high-accuracy temperature compensation.6. Exposed terminal makes more convenient wiring, in addition CMF series with large metal shell.7. Use of single-chip control makes the controller intelligent, adaptable and reliable.8. Battery controller adopts WPC control based on PWM upgrade, greatly improves system efficiency and extend battery life.Spec:Item Type: Solar controllerModel: CMG2410Technical Parameters:Rated Charging Current: 10ARated Discharge Current: 10AUSB Output Voltage: 5VTotal USB Output Current: 500MADC Output Voltage: 12VTotal DC Output Current: 2AOverload and Short Circuit : ≥1.5 times rated currentShort Circuit Recovery Time: 10sSolar Panel Open Circuit Voltage: 40VNo-Load Loss: 0.05WOvervoltage : 15V; x 2 / 24VFloating Charging Voltage (Maximum Charging Voltage): 14V; x 2 / 24VRecovery Discharge Voltage: 12V; x 2 / 24VOver-Discharge Voltage: 10.5V; x 2 / 24VControl Mode: Software intelligent controlWorking Temperature: -35 ℃ to + 55 ℃Package List:1 x Solar Controller2 x DC Connection Cable1 x User Manual
