SKU:17070378

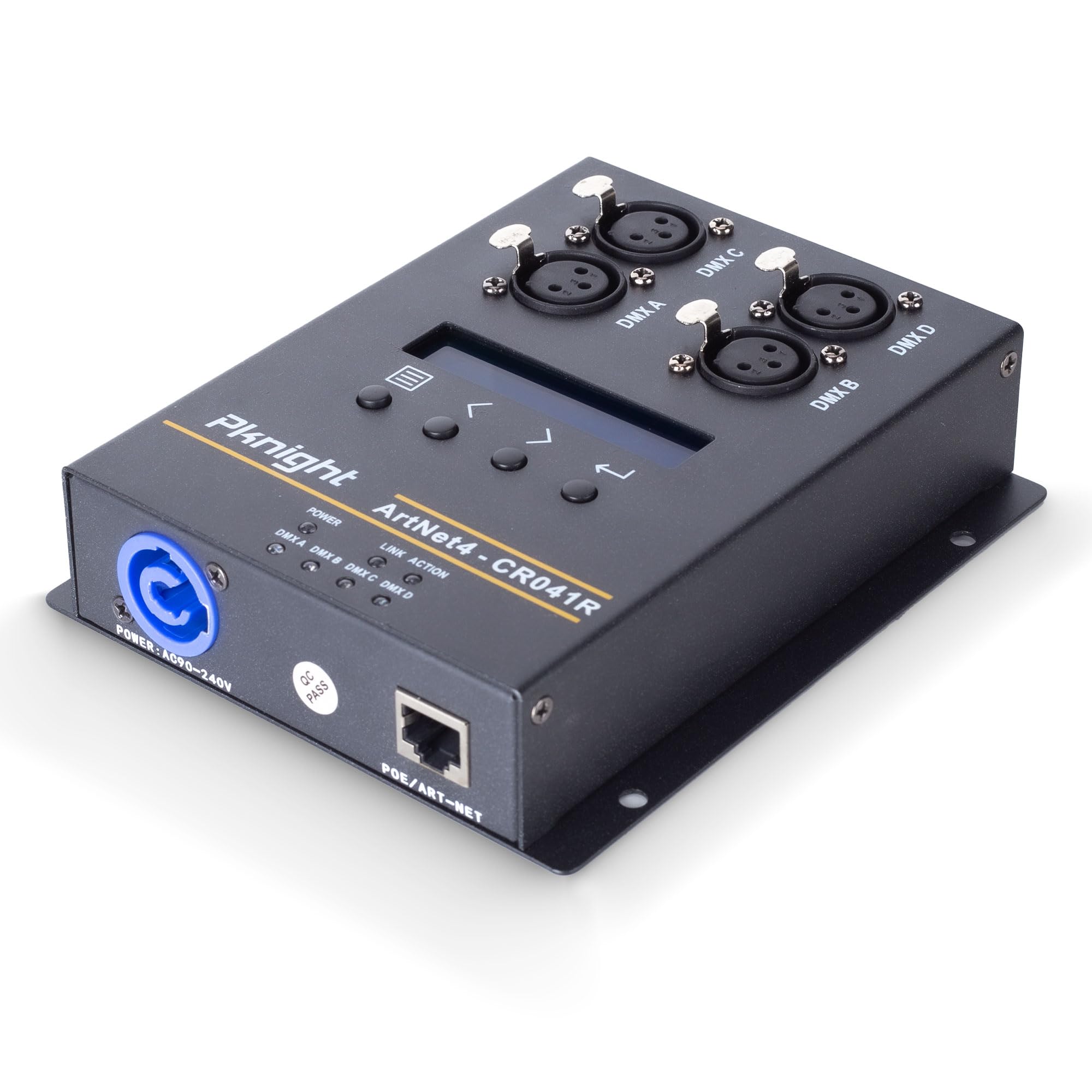

ArtNet1, ArtNet2, ArtNet3, ArtNet4 to 4CH dmx512 The Pknight artnet box is a 4 universe Ethernet to DMX converter.with Poe and truss mountable features, It is a very cost-efficient device especially for pixel related applications. With the cost calculated to about 38usd per universe, it has never been more affordable to build a multi universe project. What is Power over Ethernet (PoE)? Power over Ethernet (PoE) is technology that passes electric power over twisted-pair Ethernet cable to powered devices, It enables one RJ45 cable to provide both data connection and electric power to Pknight artnet node instead of having a separate cable for each. Easy to Set Up LED Display More intuitive display of the status of the artnet boxAfter setup, the screen automatically dims Local IP Subnet Mask Remote IP Port Universe Easy to Set Up LED Display More intuitive display of the status of the artnet boxAfter setup, the screen automatically dims Four Function Button Menu Button Forward ButtonBackward ButtonEnter Button Local IP Subnet Mask Port Universe Port Net Port Sub-Net Remote IP Transmit Mode Ethernet MAC
PowerCON VersionEquipped with internal transformer for stable power supply，allows for long cable lengths and ensures secure power transmission.Supports 90~240V input with grounding for safety.

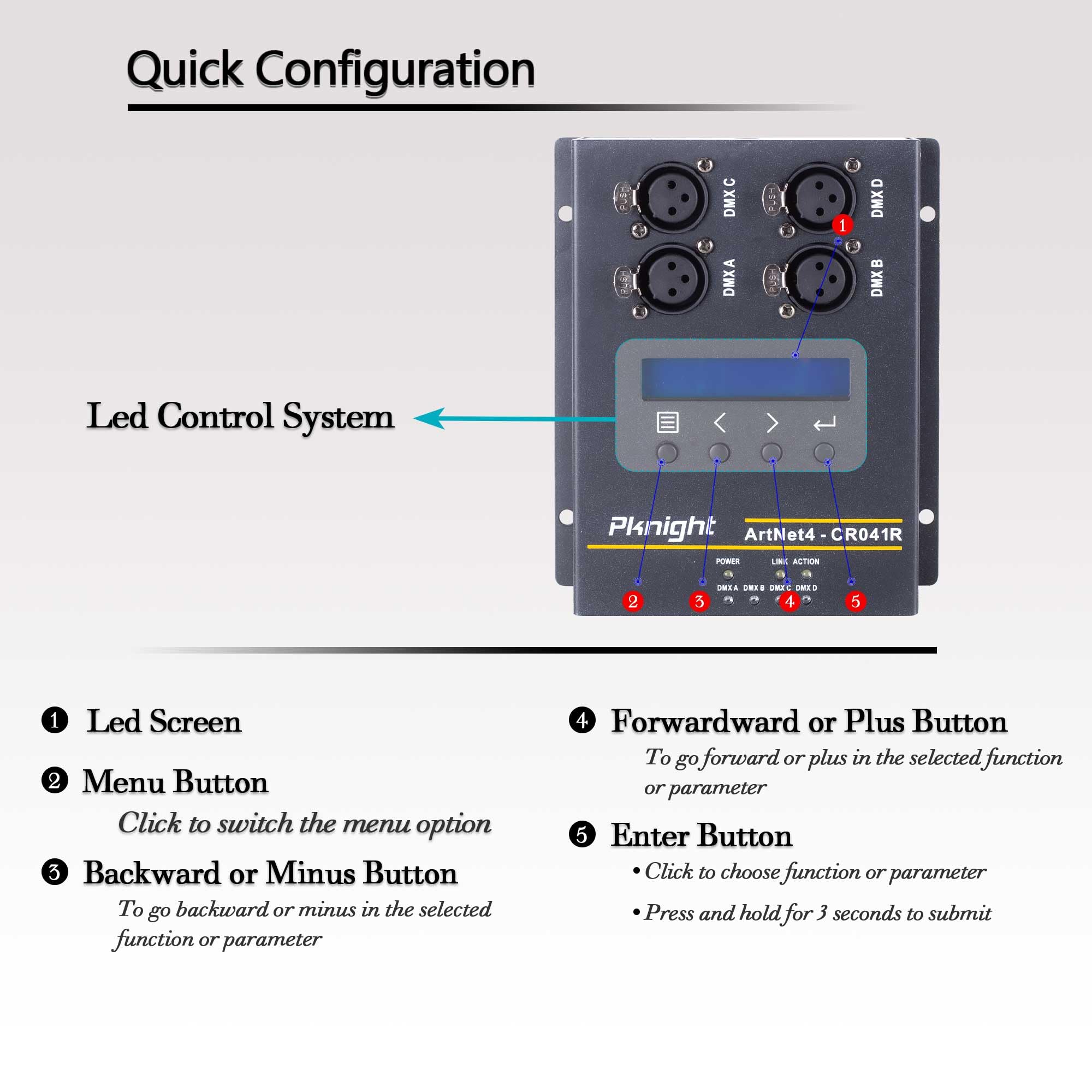

Easy to set up With the led display and 4 function buttons,you need not to find some applications or a web configuration to set it up.
Truss Mountable There is a M10 screw holes on the top of the node box,you can easily install it on the truss with a stage light clamp hook.
Remote Configuration we can remotely configure the IP address, subnet mask, net address, subnet address, and port universe through the software DMX Workshop.
PoE Available Built tough and compact the adapter can be powered by PoE (power over ethernet),get a standard 48V PoE switch with 1 2 3 6 pins Power supply，You can use the existing network cable instead of the power cable to power the device, which is very convenient.
All XLR Outputs Opt-IsolatedTwo XLR ports feature optical isolation chips, effectively blocking electrical currents from connected fixtures to protect your control system. This ensures reliable signal integrity and shields your equipment from electrical interference and surges, providing strong protection for your entire setup.
Four x DMX512 Out (3pin) with Art-Net, control up to 2048 channels.
Prior to this device, I had always used USB to DMX adapaters for the variety of small church and theater systems I had configured. However, I needed to extend our normal DMX control system into additional universes, and this device seemed to fit the bill. Just connect up a wired network connection, set the IP address, and then point your Lighting Control software Artnet settings to that IP.One VERY important note, the Universe settings on this device start at ZERO. That means that the first Universe of DMX data will be called 0 on this device, but is likely called Universe 1 on your Lighting Control Software. This one detail consumed WAY too much time for me to finally figure it out (and if the very scant documentation that comes with this device mentioned it - I sure didn't see it).Other than that, it seems to be working great! (I'm going back to get another one)
