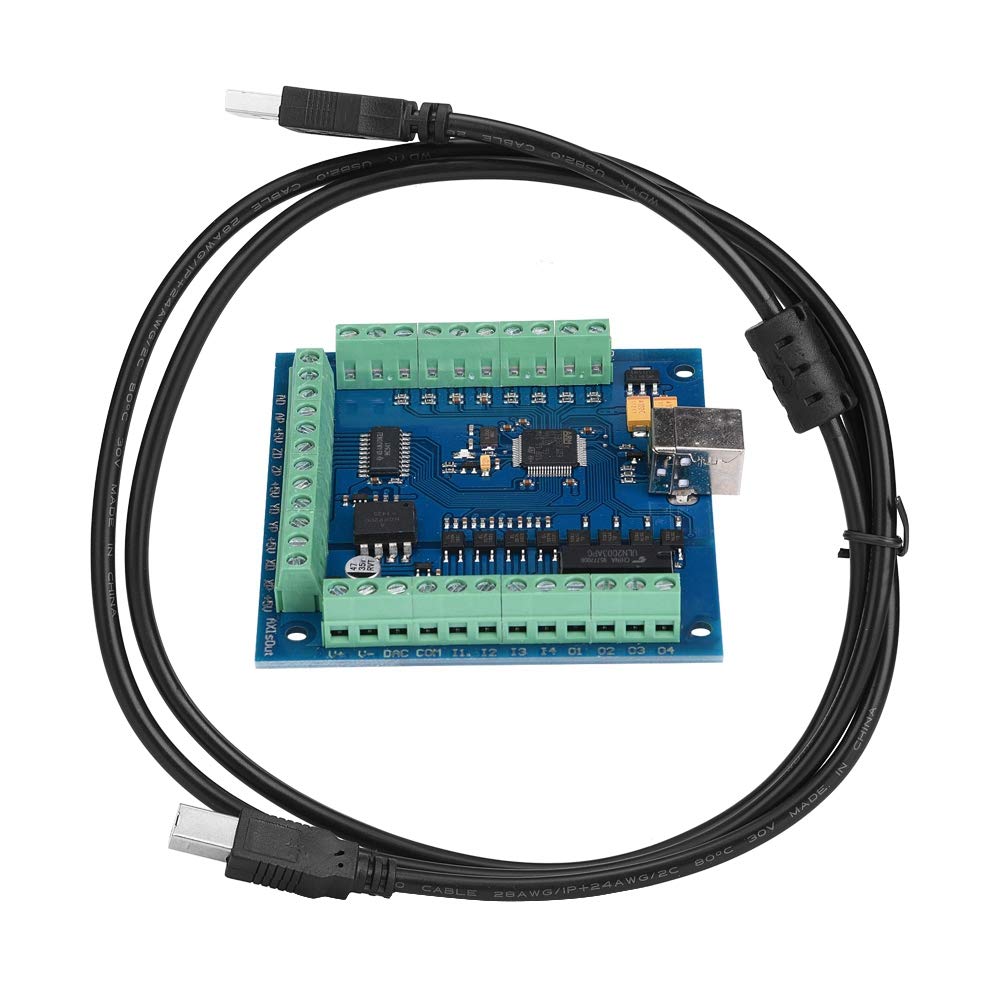

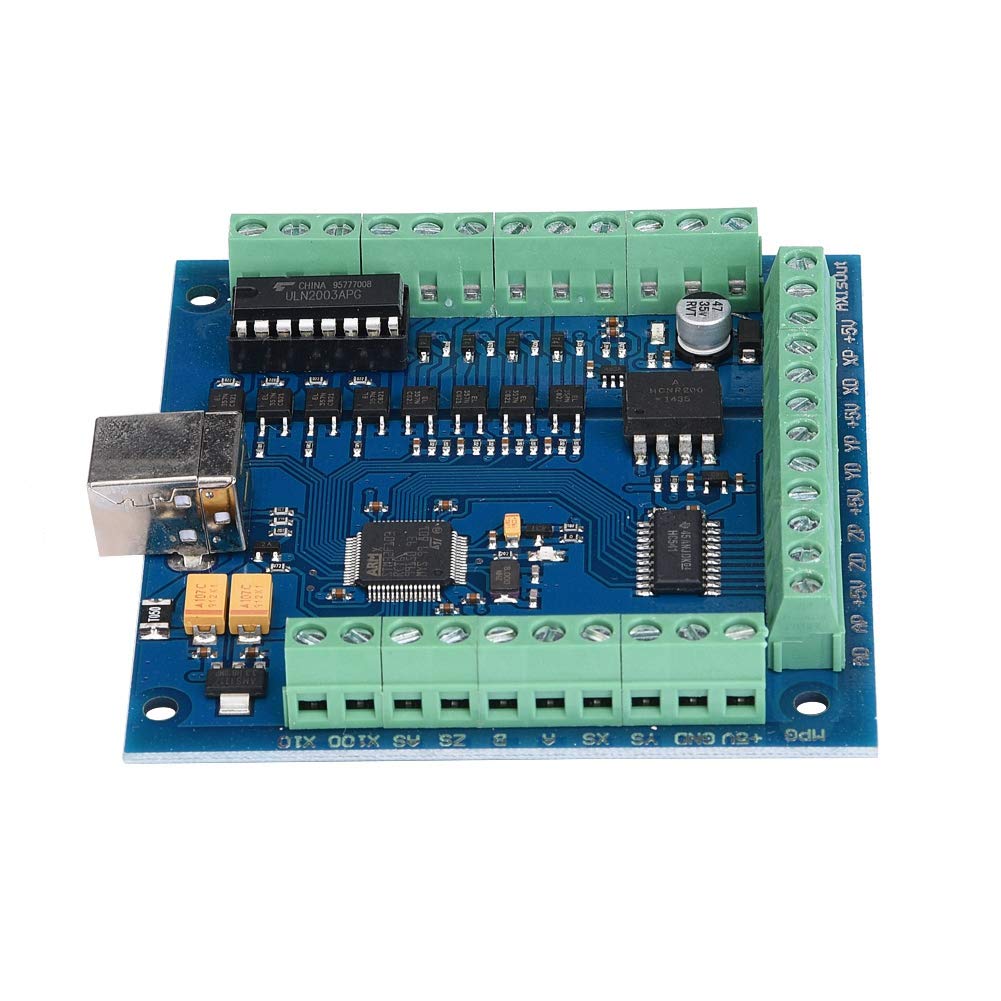

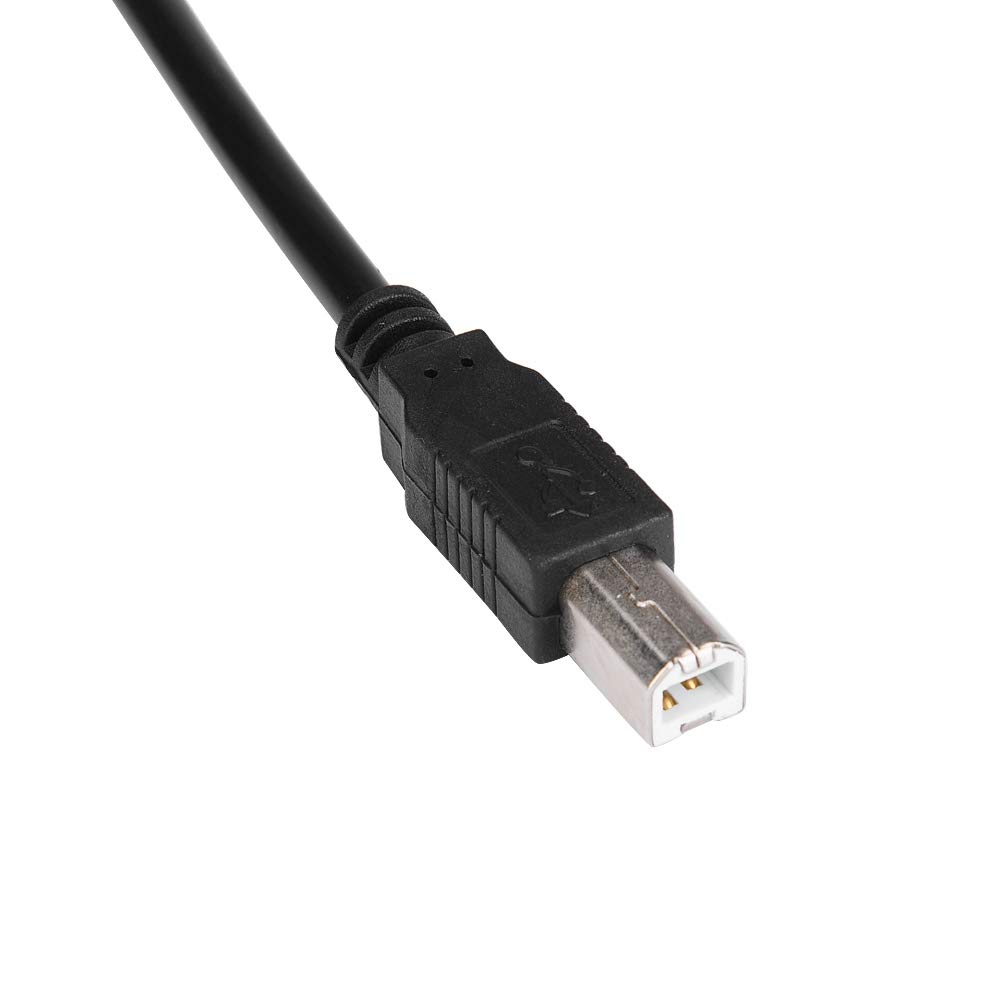

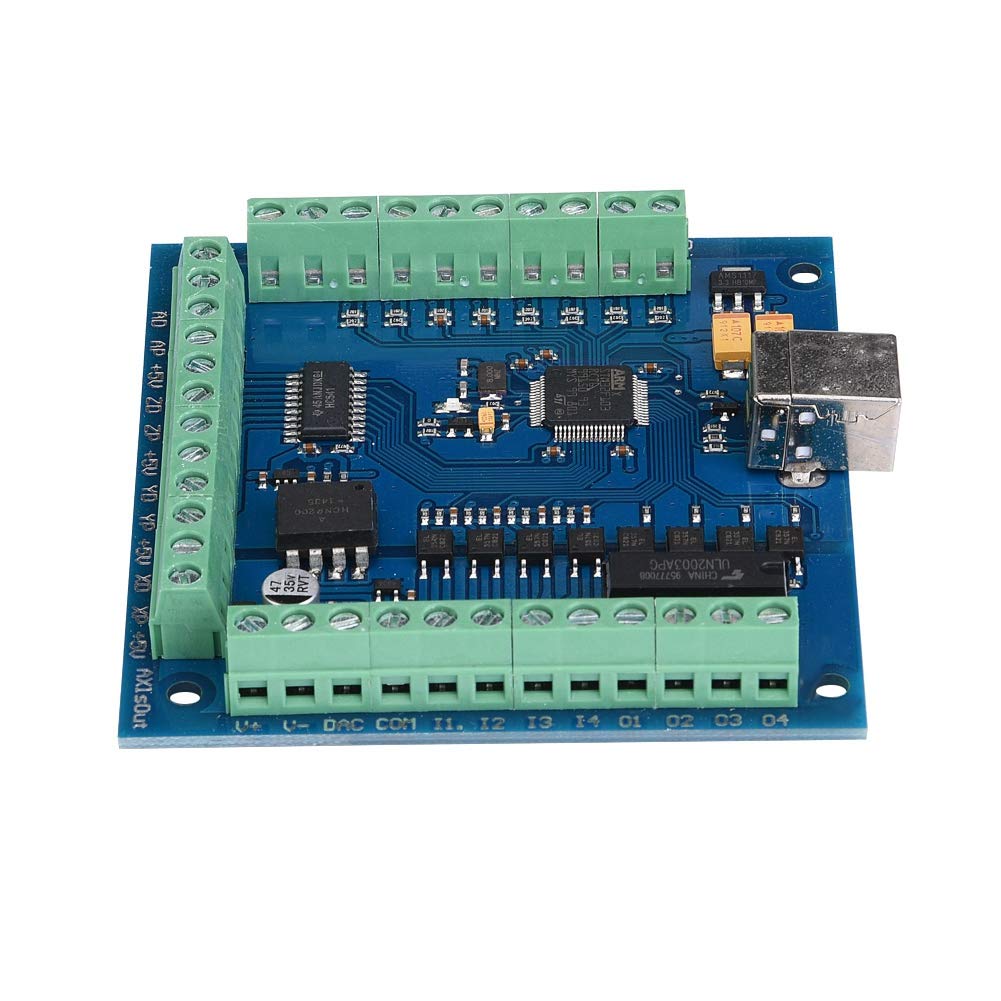

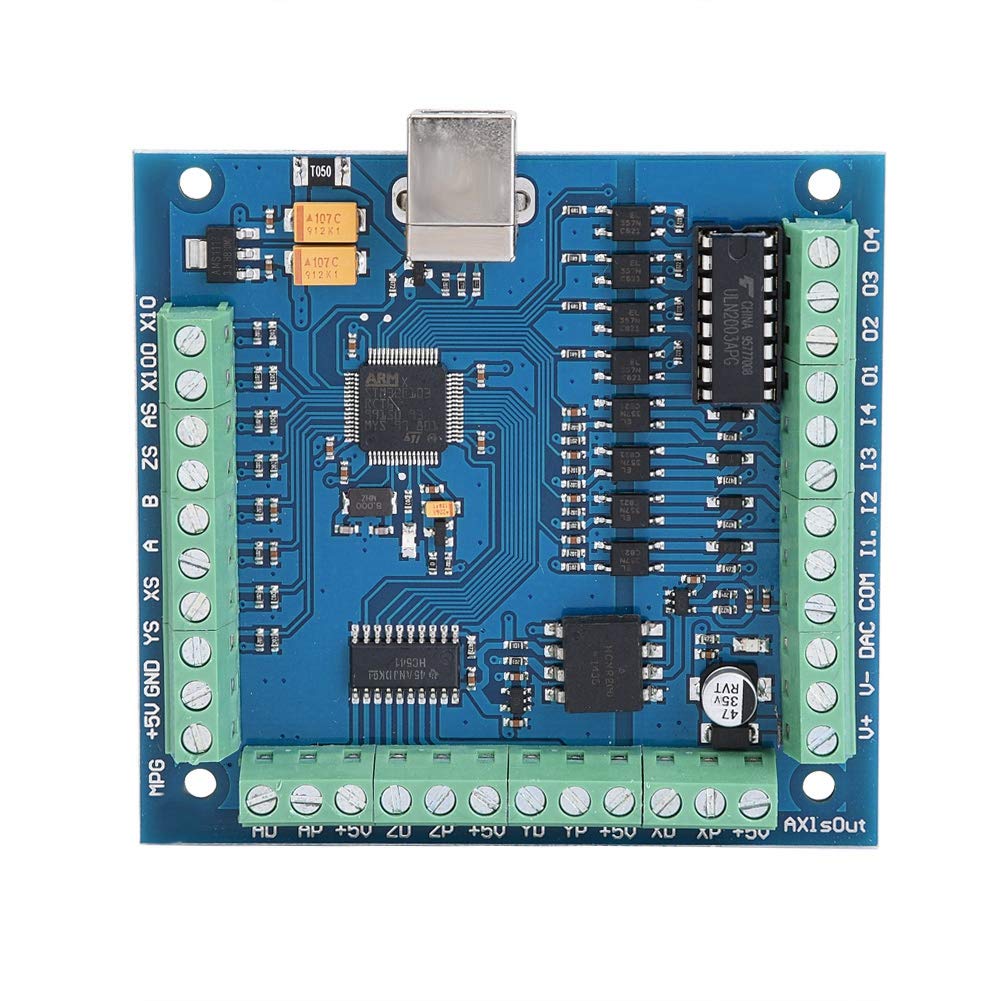

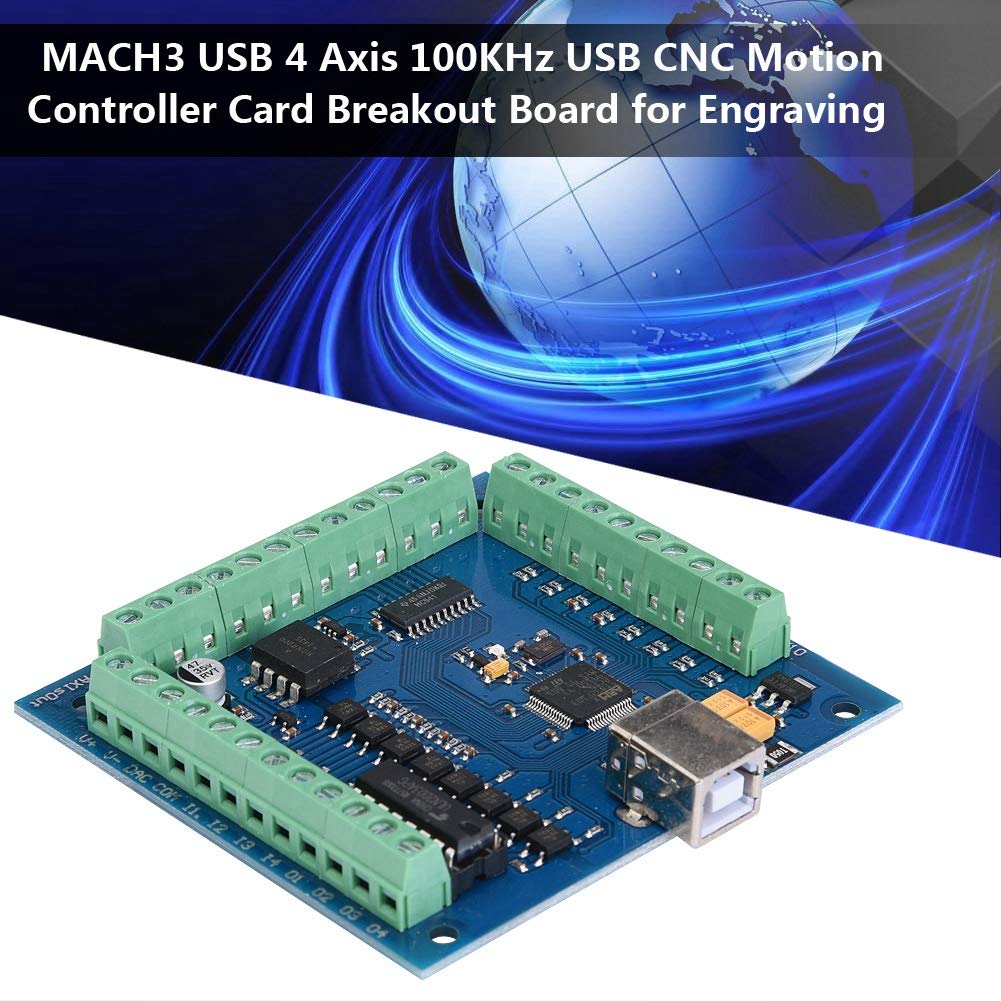

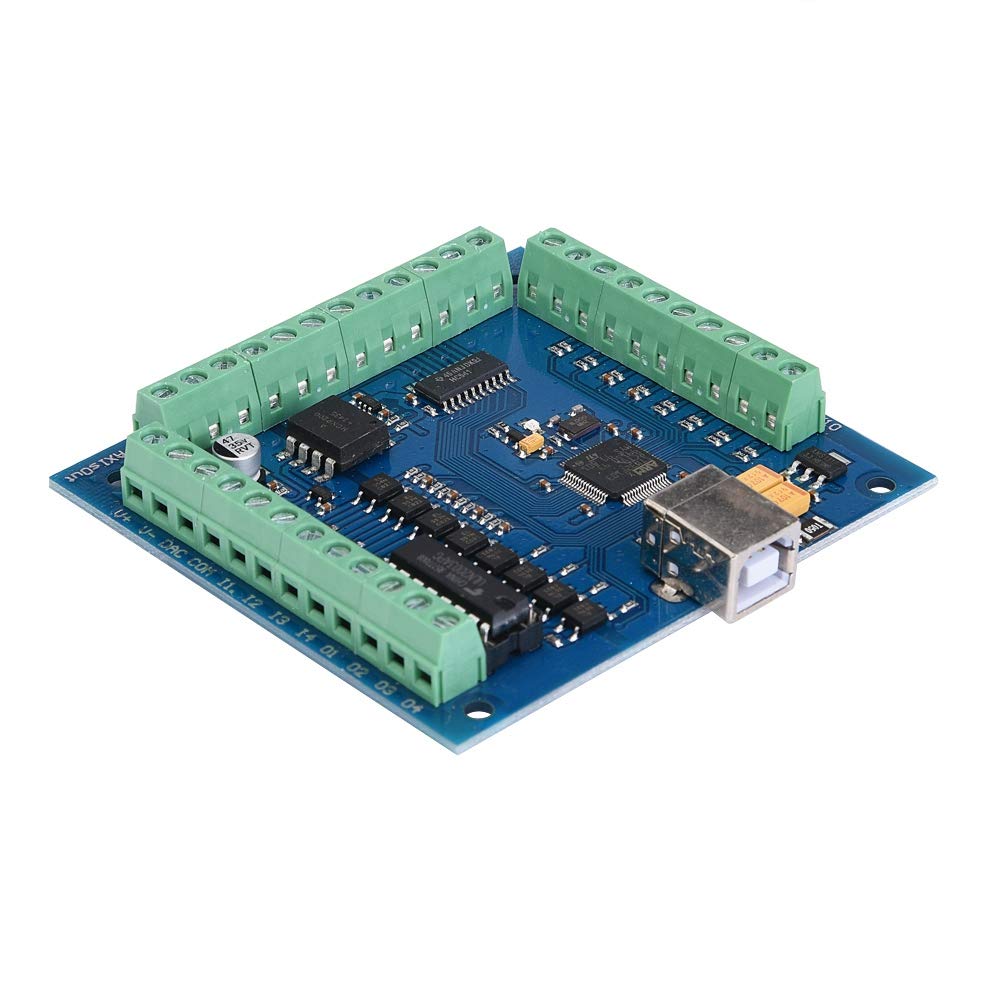

This USB motion control card has the below advantages: small volume, easy to use, has a strong anti-interference ability, No need to install any USB drivers,it can be used after plugging in the computer. ,suitable for all versions of Windows. Fully supporting all versions. Specification: Product name: motion control card Support Axis:4 Support drive type: stepper/servo driver Maximum step-pulse frequency:100KHz Weight: Approx.128g/4.5oz Package list: 1 × Motion Card 1 × cable
SUPPORT---The motion card supports automatic probe tool, emergency input, limit switch, connecting electronic handwheel. It also need an external 24V DC power supply to isolate USB and external port, making the system more stable
0-10 V OUTPUT PORT---Having 0-10V output port, the software can be used to control the spindle motor speed. With 1 status LED, the connection status could be indicated on the board clearly
4 GENERAL-PURPOSE INPUTS---With 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device
4 GENERAL-PURPOSE OUTPUT---With 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device

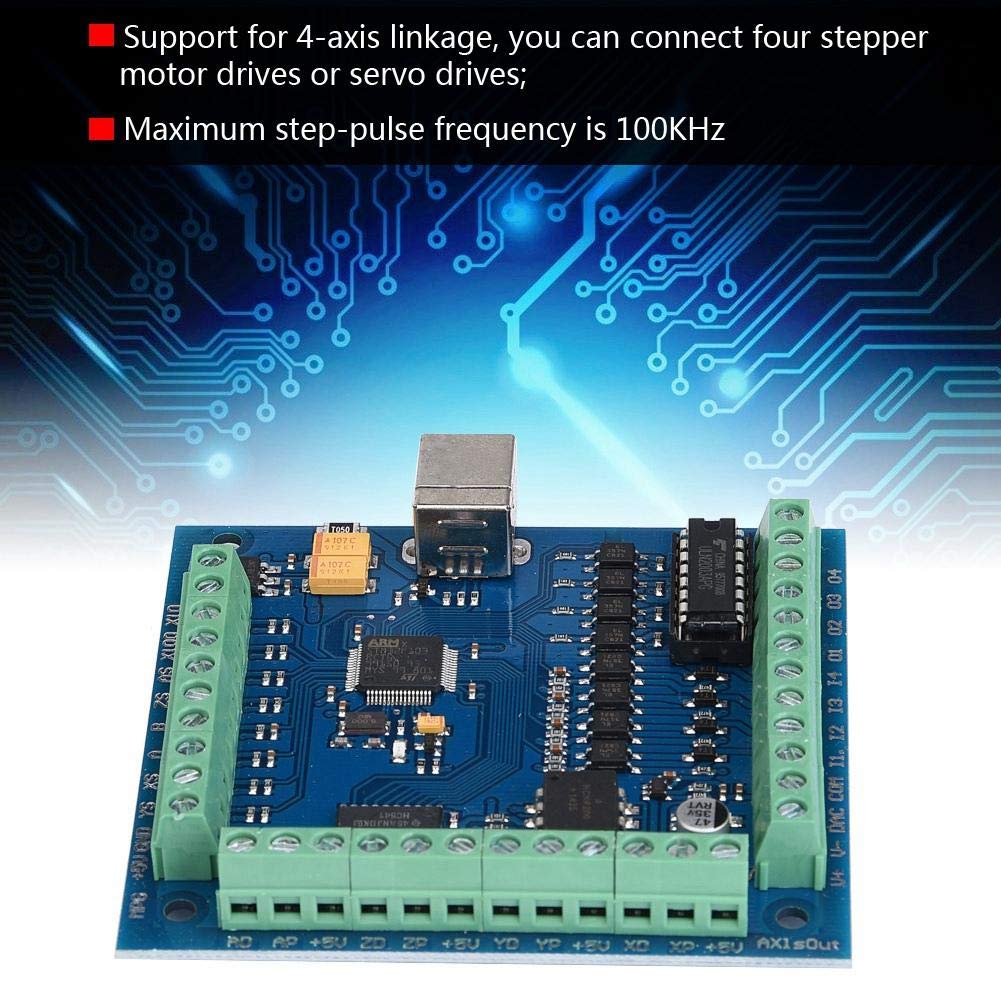

100 KHZ---The maximum step-pulse frequency is of motion card is 100KHz, which is suitable for the servo or stepping motor. Support for 4-axis linkage, you can stepper motor drives or servo drives
Find the Mach 3 drivers online, works fine without connecting any power. Connect all grounds to com. I also have all my 5v enables connected together. Works with windows 10, replacing an xp box.
